Product Specification
LOTUS Sow’s Slat 400x600 mm

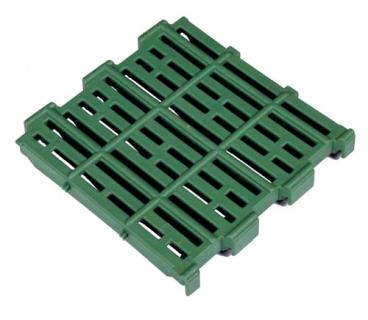

LOTUS Sow’s Slat 300x300 mm

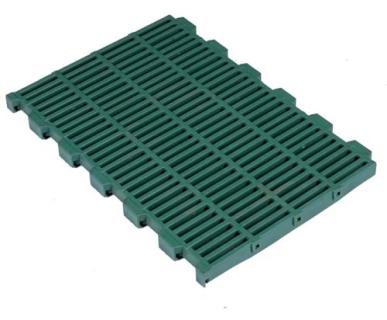

LILY Weaner’s Slat 400x600 mm

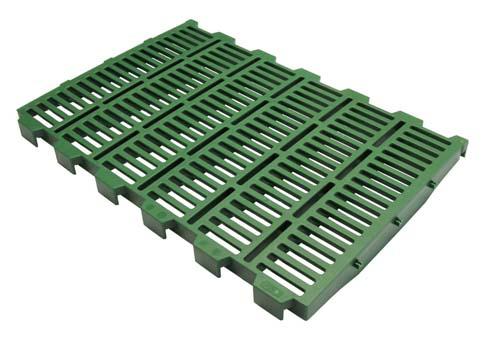

CANNA Weaner’s Slat 400x600 mm

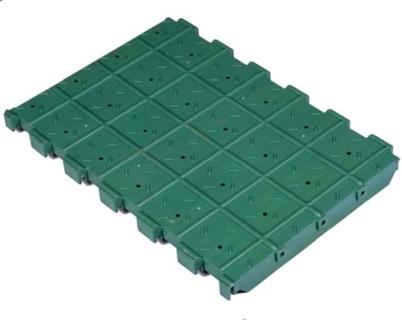

Closed Surface Slat 400x600 mm

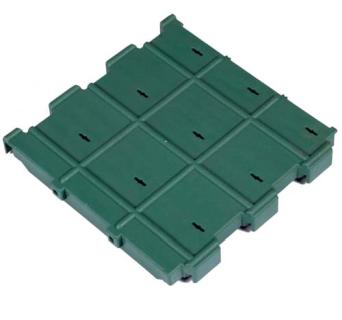

Closed Surface Slat 300x300 mm

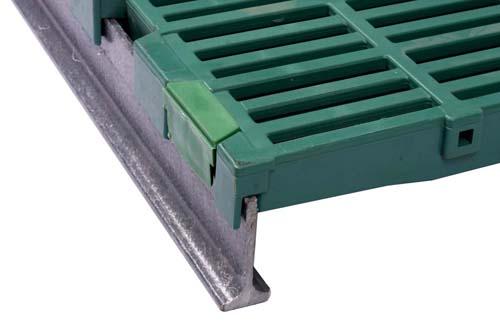

End Cap for Flora series
| Application | LILY (for weaners) | LOTUS (for sows) | FLORA (for creeps, weaners and sows) |
|---|---|---|---|
| Material | 100% pure brand new polypropylene with UV resistance* additive | 100% pure brand new polypropylene with UV resistance* additive | 100% pure brand new polypropylene with UV resistance* additive |
| Dimension | 40 x 60 cm | 40 x 60 cm | 40 x 60 cm |
| Guarantee load | 50 kg | 250 kg | 250 kg |
| Edge strip | available | available | available |
Support and Flat bar size as details show in below table
| Channel width (mm) | For Weaners | For Sows | For creeps/weaners | For sow |
|---|---|---|---|---|
| 1200 | 40 x 5 | 50 x 5 | 40 x 5 | 50 x 5 |
| 1400 | 50 x 5 | 50 x 5 | 50 x 5 | 50 x 5 |
| 1600 | 50 x 5 | 60 x 5 | 50 x 5 | 60 x 5 |
| 1800 | 60 x 5 | 80 x 5 | 60 x 5 | 80 x 5 |
| 2000 | 60 x 5 | 80 x 5 | 60 x 5 | 80 x 5 |
| 2400 | 80 x 5 | 100 x 5 | 80 x 5 | 100 x 5 |
| 2800 | 100 x 5 | 100 x 5 | 100 x 5 | 100 x 5 |
| 3000 | 100 x 5 | - | 100 x 5 | - |
